FIRE DETECTION ALARM SYSTEM GUIDELINES



FDA (Fire Detection Alarm Details)

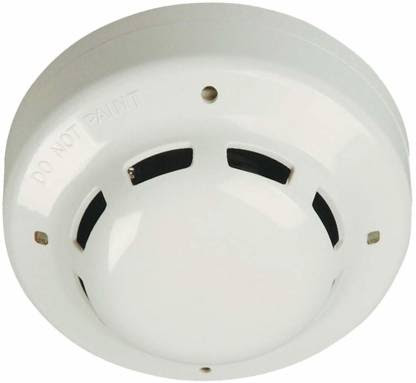

Smoke Detector Photo electric

Photo electric Smoke detector

Smoke detector Wired

Smoke Detector wired

Sl.no                                        Description

1                           Supply ,installation ,testing & commissioning of 5

                          loop addressable fire alarm panel with 30 minutes

                          battery back up , battery charger , alarm bell,

                          test buttons suitable for 99 devices per loop .UPS

                          power to be provided to panel by default

2                         Active Repeater silence mute reset accept mute

                        evacuate and test controls with RS 485 communication

                        module

3                         RS485 Communication module

4                         Supply ,installation ,testing & commissioning of  loop card

5                         Supply ,installation ,testing & commissioning of

                       addressable type ceiling mounted heat detector

6                         Supply ,installation ,testing & commissioning of

                        addressable type above and below ceiling mounted

                       smoke detector

7                        Supply ,installation ,testing & commissioning of

                       addressable manual break glass unit including with

                       mounting box.

8                        Supply ,installation ,testing & commissioning of

                       addressable  electronic alarm hooters.

9                        Sensor  Mounting base made in India

10                        Supply ,installation ,testing & commissioning of

                       addressable fault isolator.

11                        Single Input Monitor Module, requires

                       M220E/SMB for surface mounting or M200E-Din for

                       mounting to DIN rails.

12                        Supply ,installation ,testing & commissioning of

                      addressable control module.

13                       Analogue Beam

14                       Surface Mounting Kit

15                       Response Indicator

CABLE REQUIRED FOR FIRE ALARM SYSTEM

1). Supply ,laying of 1100 volts stranded class 2 bare copper conductor XLPE

insulated cores laying for laid up extruded ST2 PVC I/SH single layer galvanised

steel round wire armoured and extruded FR-LSH PVC outer sheathed fire alarm

cable for fire alarm system.Cable shall be laid on ceilings and wall by providing

shaddles and clamp or on prelaid perforated cable tray.

Make: - Polycab colour Red

Polycab 1.5mm x 2core copper armoured FRLSH UG fire alarm cable

Polycab 1,5 mm x 2core Ind.Flex.M/core cable 1100v grade

DETECTOR FOR FIRE ALARM SYSTEM

SMOKE DETECTOR:-

Smoke Detector Honeywell ,Make: MorleyModel/Part Code: HMPSES2+MIB501APIV

ADDRESSABLE FDA PANEL FIRE PANEL BOQ

Make: Honeywell, Model: MORLEY - IAS ZX5SE, No of loops: 5,

1).Low profile Optical Smoke Sensor(HMPSES2): Morley

2).Sensor Mounting base for addressable detectors : Morley

3).ZXrA Active Repeater silence Mute Reset Accept Mute Evacute

4).Active Repeater Silence Mute

Reset Accept Mute Evacuate and test controls with RS 485 Communication module

5).).ZX5Se 15 loop control panel 230Vac 4 Sounder

ZX5Se 1-5 loop control panel, 230Vac, 4sounder circuits, 4 line display and networking capability,

6Amp PSU with 450mA loop capability 500 x 500x 195 mm

6) RS 485 Communication module

7) Loop Driver Card for Morley IAS Protocol ,460mA

8) Heat Sensor 58degree C EN54 part 5 Type A1 requires

9) Low Profile Optical Smoke Sensor

10) Red Add Call Point Flush Mounting Glass

11) Sensor Mounting base for Addressable detectors

12)Intelligent Wall Mounted Sounder Red

13) Input- Cum- Monitor Module : Single input monitor

14)Relay Module : Output control module , Requires M200ESMB

15) Analogue Beam

16) Surface Mount Kit for IR reflective beam

17) Isolator module : Loop isolation module ,Requires M200ESMB

18) Response indicator (SSFRI007H)

19)MCP Back box

20) ZX r-A Active Repeater , Silence ,Mute ,Reset ,Accept , Evacuate and Test Controls

.For use with DX control panels only use a 24 V dc supply .For use with ZX control panel use a

24Vdc supply and an RS 485 card.165 x 254 x 50mm(H x Wx D)

21)Loop Isolation Module ,Requires M 200E -SMB for surface mounting or M200E -DIN

for mounting to DIN rails

WORK DESCRIPTION:-

1). Supply installation testing & commissioning of 5 loop addressable fire alarm panel with

30 minutes battery back up ,battery charger , alarm bell, test buttons suitable for 99 devices

per loop . UPS power to be provided to panel by default.

2). Active Repeater silence mute reset accept mute evacuate and test controls with RS485

communication module.

3).RS 485 communication module

4). Supply installation testing & commissioning of loop card.

5)Supply installation testing & commissioning of addressable type ceiling mounted heat detector.

6)Supply installation testing & commissioning of addressable type above and below ceiling

mounted smoke dtector.

7).Supply installation testing & commissioning of addressable manual break blass unit including with mounting

box.

8).Supply installation testing & commissioning of addressable electronic alarm hooters.

9).Sensor mounting base.

10)Supply installation testing & commissioning of addressable fault isolator.

11).Single Input monitor module requires M220E/SMB for surface mounting .

12). Supply installation testing & commissioning of addressable control module.

13).Analogue beam.

14). Surface Mounting kit.

15).Response Indicator.
